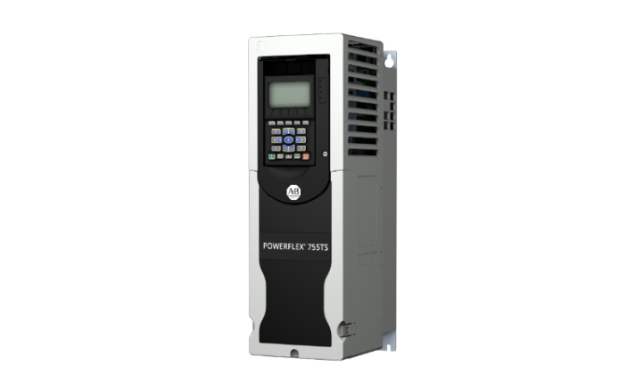

PowerFlex 755TS

Production information
  1. Rated Power:
    • 200–240V: 0.37–132 kW / 0.5–200 Hp / 2.2–477 A
    • 380–480V: 0.75–355 kW / 1.0–500 Hp / 2.1–617 A
    • 600V: 1.0–300 Hp / 1.7–289 A
    • 690V: 7.5–250 kW / 12–263 A
  2. Enclosure Options: IP00/IP20 NEMA/UL open type, flange mounting, IP54 NEMA/UL Type 12, and XT enhanced corrosion protection option.
  3. Built-in dual port Gigabit EtherNet, 1000 MB - 10x higher throughput when compared to 10/100.
  4. TotalFORCE Technology Motor Control：flexible, high-performance motor control -Support
    • Sensorless vector
    • Flux vector control
    • Volts per hertz
    • Economizer
    • Field-oriented control
    • Permanent magnet motor control
    • Synchronous reluctance
  5. Implementing Advanced Predictive Maintenance Functions：The predictive maintenance function can monitor the following components:
    • Insulated-gate bipolar transistors (IGBTs)
    • Fans
    • DC bus capacitors
    • Circuit breaker
    • LCL capacitors
  6. The slot-based hardware architecture gives you the flexibility to select up to five option cards to suit your application for I/O, communications, safety and feedback.
  7. More simplified drive configuration and programming： PowerFlex drives make configuration and programming fast and uncomplicated with easy-to-use software packages and tools. Configuration and programming options include:
    • Integrated LCD Human Interface Module(HIM)
    • DriveTools SP software
    • Connected Components Workbench software platform
    • FactoryTalk® Studio 5000 Logix Designer® software
  8. Safety certified Solutions：
    Drive Hardwired Safe Torque Off Networked Safe Torque Off Safe Speed Monitoring Networked Integrated Safety Functions
    PowerFlex 755TS Option: SIL3, PLe, cat. 3 Option: SIL3, PLe, cat. 3 Option: SIL3, PLe, cat. 4 Option: SIL3, PLe, cat. 4
  9. CIP Security for secure communications protocol ensuring authorization, integrity, and privacy between trusted devices.
  10. XT corrosive gas protection option helps reduce threat of early equipment failure from corrosion.
